General
MINI VITA
Tractor trailers
MINI VITA
The MiniVita tractor trailers are the smallest version of the Vita trailer series. They are available in three models: E1500, T2500, and T2500 PLUS. Unlike the first two models, the “PLUS” version offers three-sided hydraulic tipping, and the price also includes 40 cm high mesh extensions.
-
E 1500
-
T 2500
-
T 2500 PLUS
| Model | E 1500 | T 2500 | T 2500 PLUS |
|---|---|---|---|
| Maximum Gross Weight (kg) | 1000 | 2000 | 2000 |
| Curb weight (kg) | 320 | 400 | 400 |
| Internal loading area dimensions (mm) | 2060 x 1020 | 2320 x 1170 | 2330 x 1170 |
| External loading area dimensions (mm) | 2160 x 1100 | 2420 x 1270 | 2430 x 1270 |
| Height (cm) | 107 | 107 | 107 |
| Side board height (mm) | 400 | 400 | 400 |
| Track width (mm) | 1100 | 1270 | 1270 |
| Three-way tipping | NE | NEIN | DA |
| Recommended minimum tractor power (HP) | 20 | 25 | 25 |
Maximum Gross Weight (kg)
Curb weight (kg)
Internal loading area dimensions (mm)
External loading area dimensions (mm)
Height (cm)
Side board height (mm)
Track width (mm)
Three-way tipping
Recommended minimum tractor power (HP)
|
Model
Maximum Gross Weight (kg)
1000
2000
2000
|
Model
Curb weight (kg)
320
400
400
|
Model
Internal loading area dimensions (mm)
2060 x 1020
2320 x 1170
2330 x 1170
|
Model
External loading area dimensions (mm)
2160 x 1100
2420 x 1270
2430 x 1270
|
Model
Height (cm)
107
107
107
|
Model
Side board height (mm)
400
400
400
|
Model
Track width (mm)
1100
1270
1270
|
Model
Three-way tipping
NE
NEIN
DA
|
Model
Recommended minimum tractor power (HP)
20
25
25
|

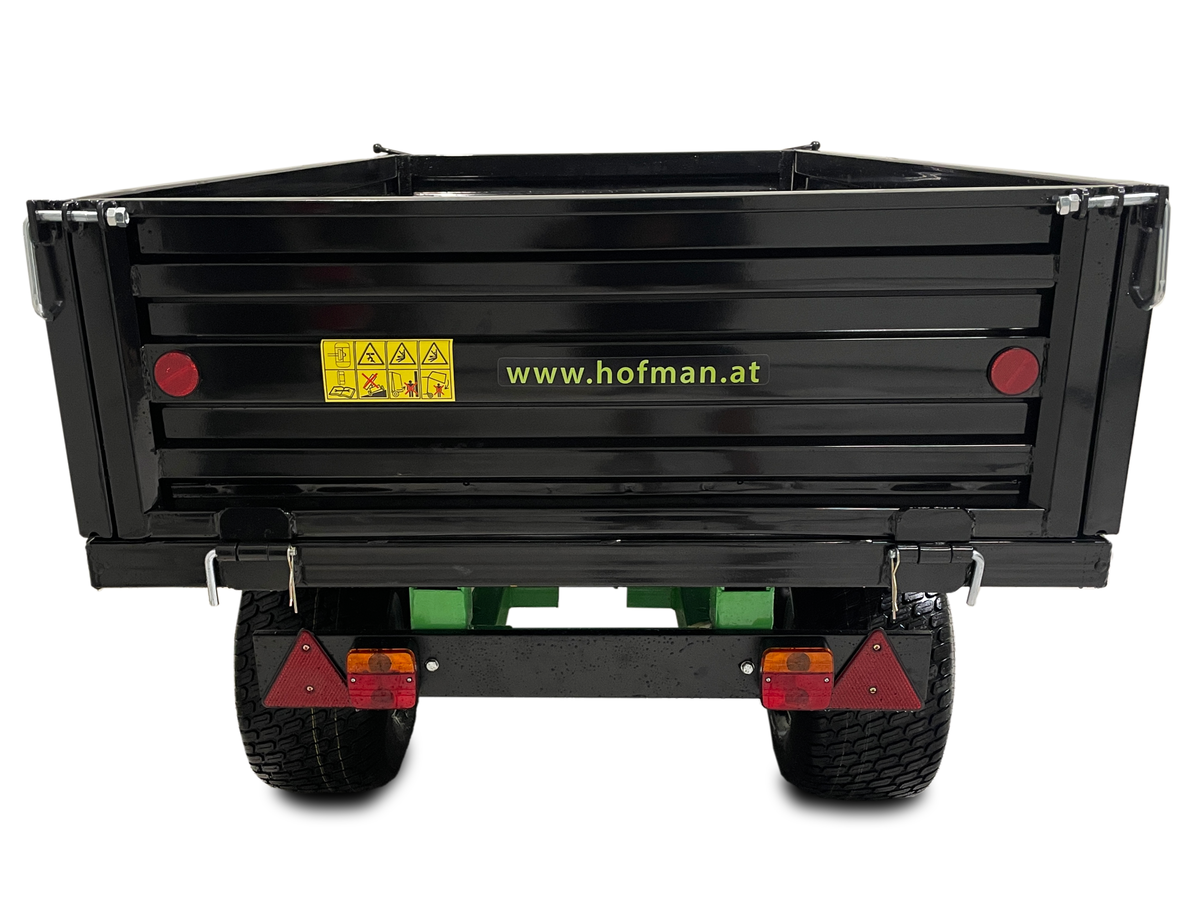

MiniVita E 1500
Click to enlarge the photo to see the full gallery.
MiniVita T 2500
Click to enlarge the photo to see the full gallery.

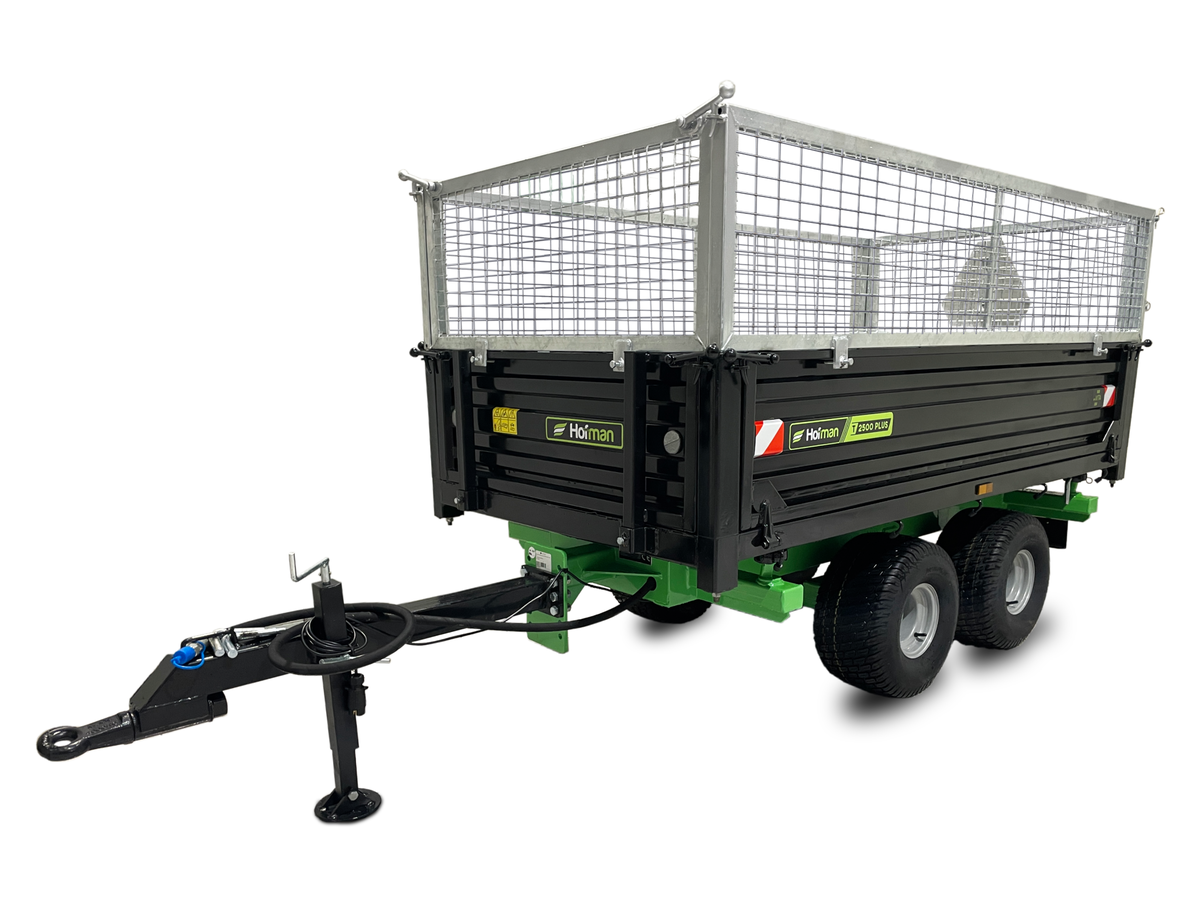

MiniVita T 2500 PLUS
Click to enlarge the photo to see the full gallery.
