Log splitter with PTO drive
MAX
The MAX T 23 K log splitter with PTO drive is designed for more demanding users. As standard, at no extra charge, it includes a cast iron pump, a table with extension, an auxiliary lifting table for short logs, and holders for a chainsaw, fuel can, splitting wedge, and axe. The rich equipment and high-quality construction increase safety, speed, and working comfort. Despite this, the log splitter remains competitively priced, placing it among the best choices in its class.
| Model | T 23 K |
|---|---|
| Splitting height (mm) | 550/1100 |
| Minimum required tractor power (HP/kW) | 37 / 27 |
| Weight (kg) | 508 |
| Dimensions (L x W x H) (mm) | 1350 x 1017 x 2835 |
| Drive | PTO drive |
| Splitting force (t) | 22 |
| Max. length of the graft (mm) | 550 |
| Min. power of the tractor (HP) | 27 |
| Max. number of PTO revolutions (rpm) | 540 |
| Speed of cutting H1/H2/PH (cm/s) | (3,6-7,2)-3,6 |
| Quantity of oil (l) | 31 |
| Length (mm) | 1350 |
| Width (mm) | 1017 |
| Height in working position (mm) | 2835 |
Splitting height (mm)
Minimum required tractor power (HP/kW)
Weight (kg)
Dimensions (L x W x H) (mm)
Drive
Splitting force (t)
Max. length of the graft (mm)
Min. power of the tractor (HP)
Max. number of PTO revolutions (rpm)
Speed of cutting H1/H2/PH (cm/s)
Quantity of oil (l)
Length (mm)
Width (mm)
Height in working position (mm)
|
Model
Splitting height (mm)
550/1100
|
Model
Minimum required tractor power (HP/kW)
37 / 27
|
Model
Weight (kg)
508
|
Model
Dimensions (L x W x H) (mm)
1350 x 1017 x 2835
|
Model
Drive
PTO drive
|
Model
Splitting force (t)
22
|
Model
Max. length of the graft (mm)
550
|
Model
Min. power of the tractor (HP)
27
|
Model
Max. number of PTO revolutions (rpm)
540
|
Model
Speed of cutting H1/H2/PH (cm/s)
(3,6-7,2)-3,6
|
Model
Quantity of oil (l)
31
|
Model
Length (mm)
1350
|
Model
Width (mm)
1017
|
Model
Height in working position (mm)
2835
|

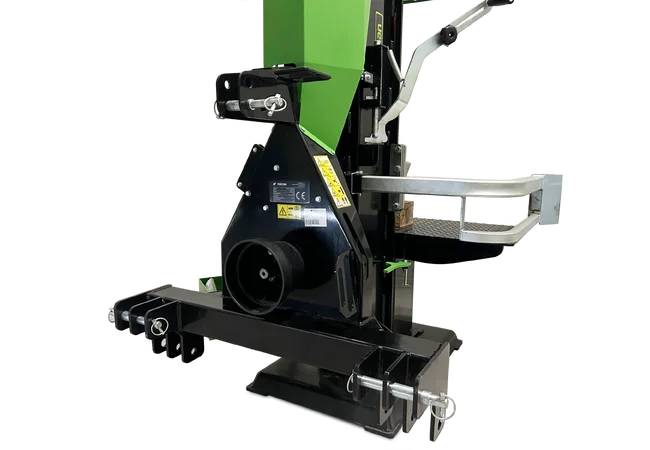

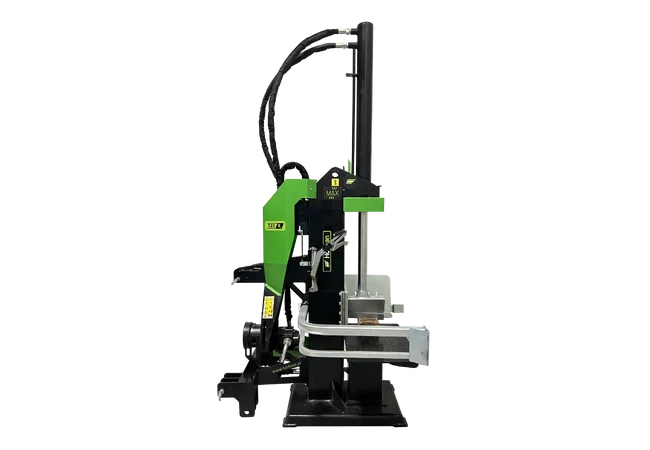

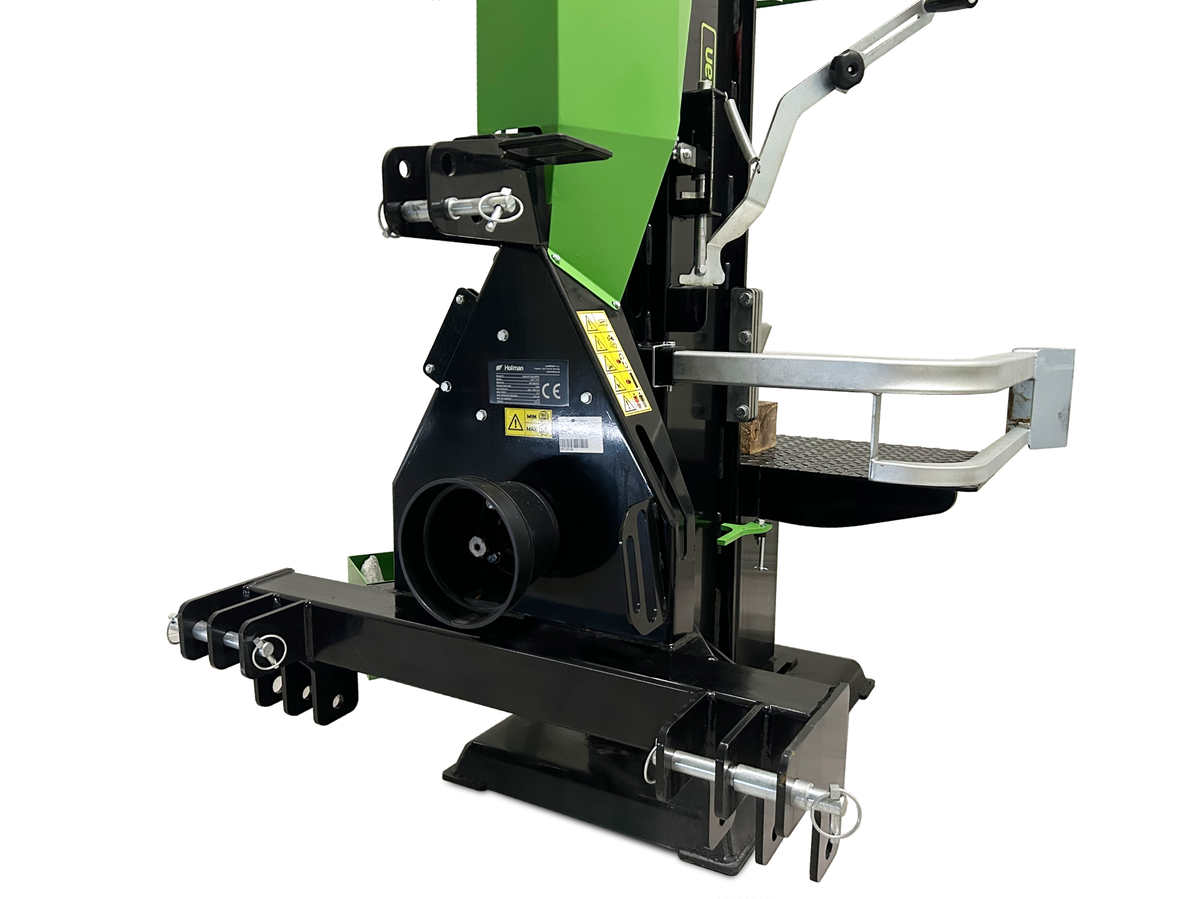

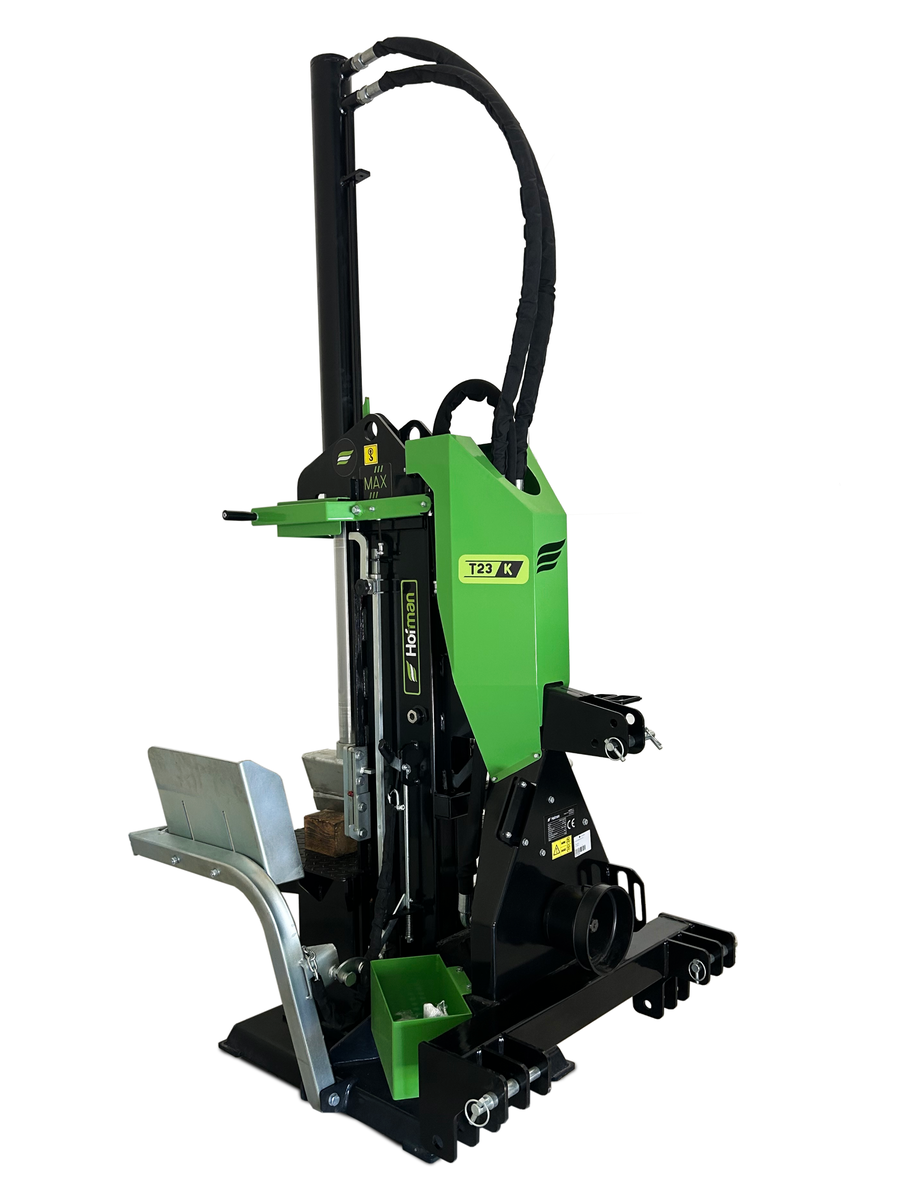

REX T 23 K
